This is literally the worst case of wet insulation I have ever come across. Also highlights don’t presume you know what the problem is, it’s not always that simple!

A property owners recently had cavity wall insulation installed to keep their property nice and warm and cozy………

A few months later  severe mould appeared to the under stairs cupboard and also along the stringer of the stairs on the first floor.

We were called in for a damp survey, to be fair I thought the problem would be the insulation just because the house has been fine for years, bit of insulation injected and we have a problem.

On pulling up on the drive it was evident how damp the wall was, it was visibly damp stained.

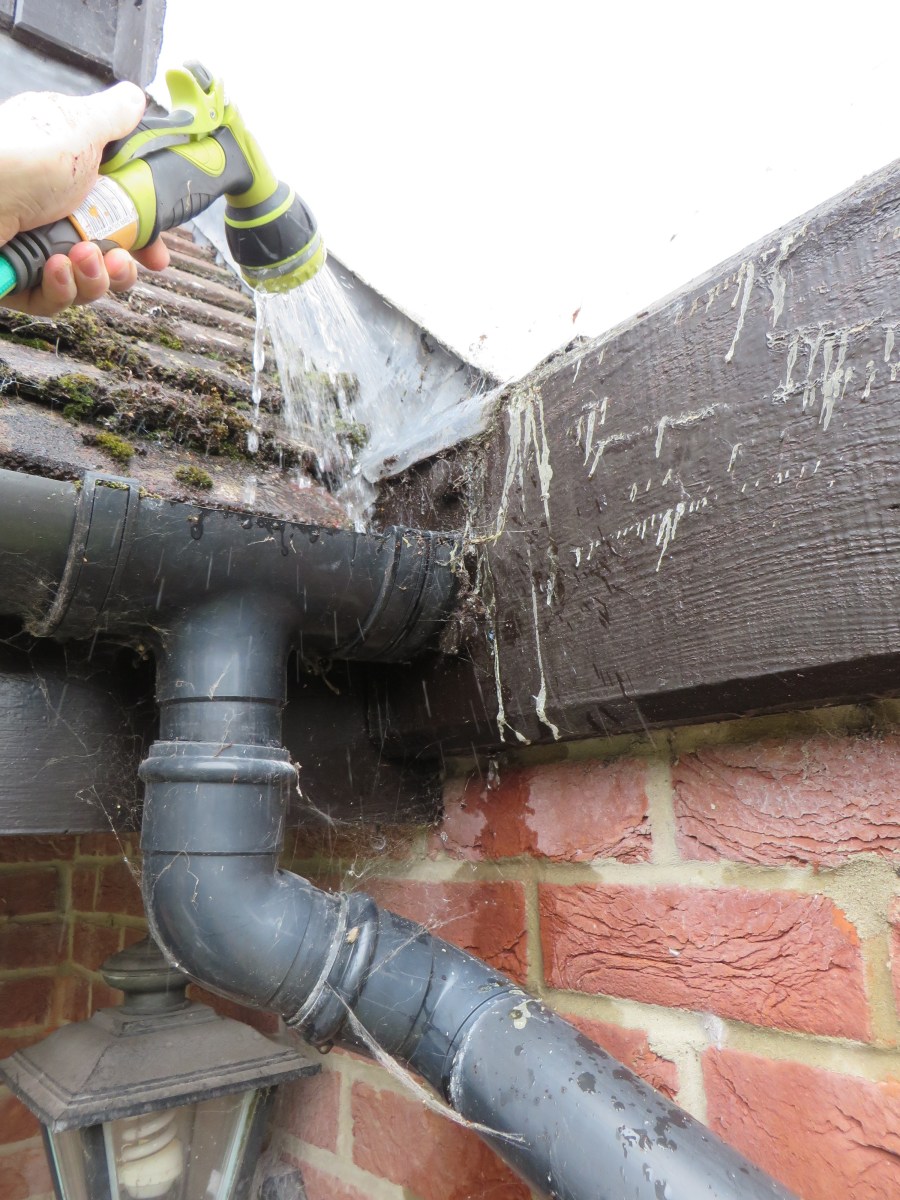

Externally there was a possible defect with the guttering that had a small leak tracking back against the wall.

IMG_6276

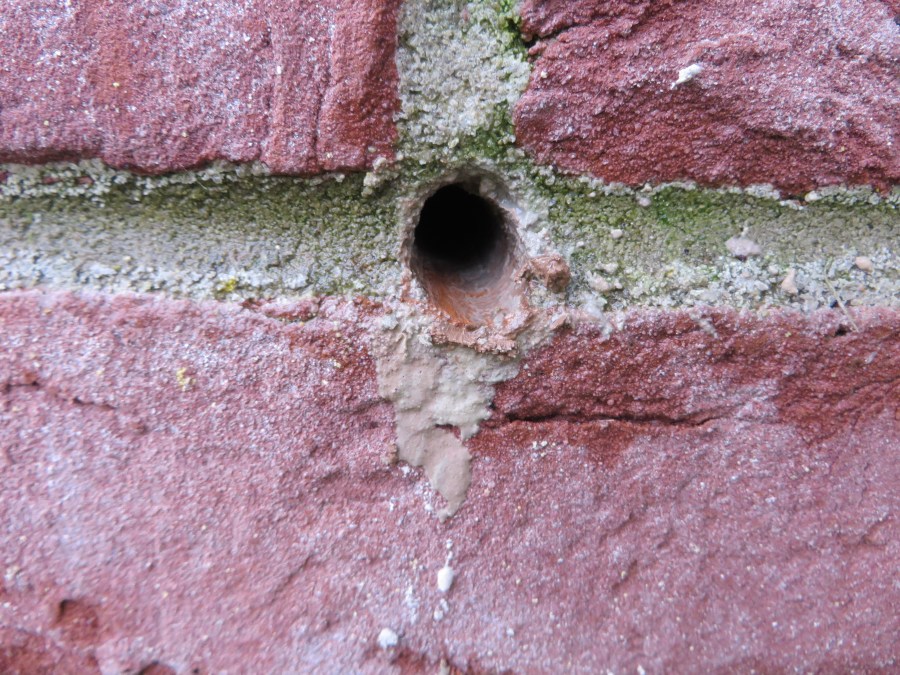

I proceeded to drill the cavity to carry out a boroscope inspection, for the first time ever in my life water span off the drill bit onto my hand….wow this wall is soaked.

IMG_6275

The boroscope didn’t really show anything as the wall was stuffed full of insulation, I had to remove a brick.

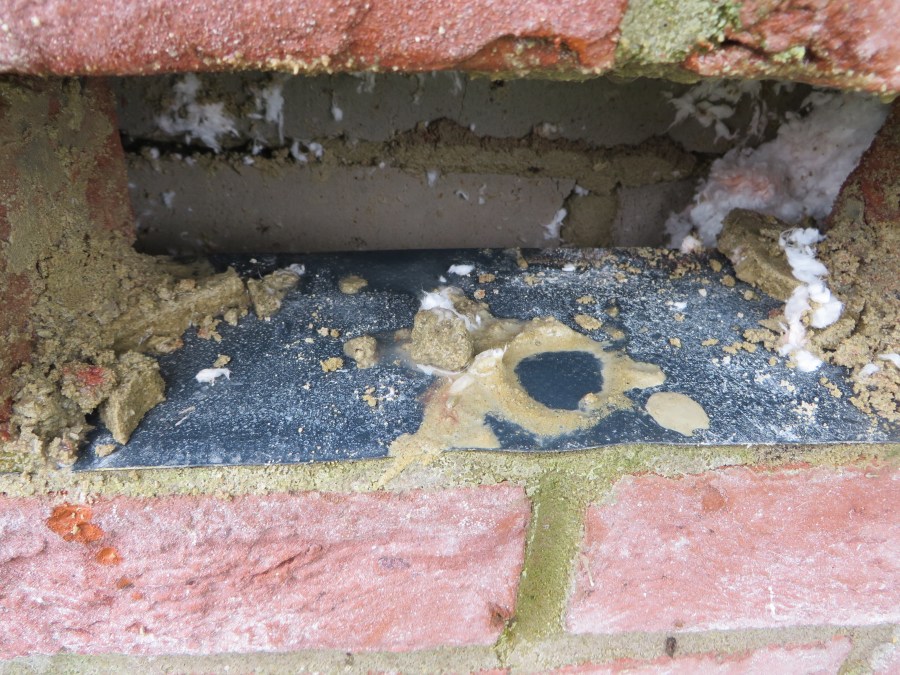

The below picture just shows how wet the wall is there, there was water on the damp proof course.

IMG_6273

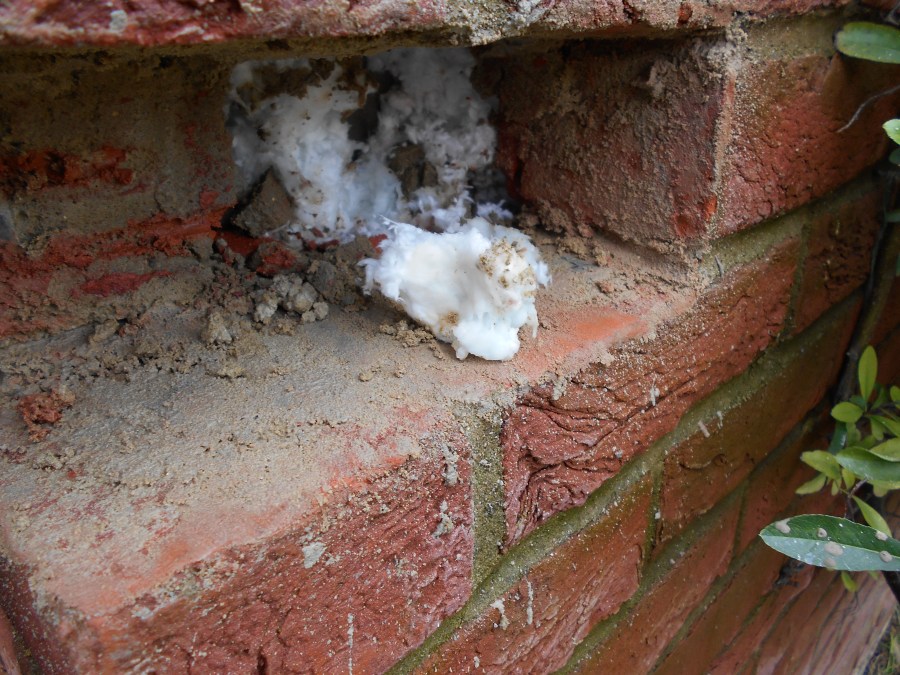

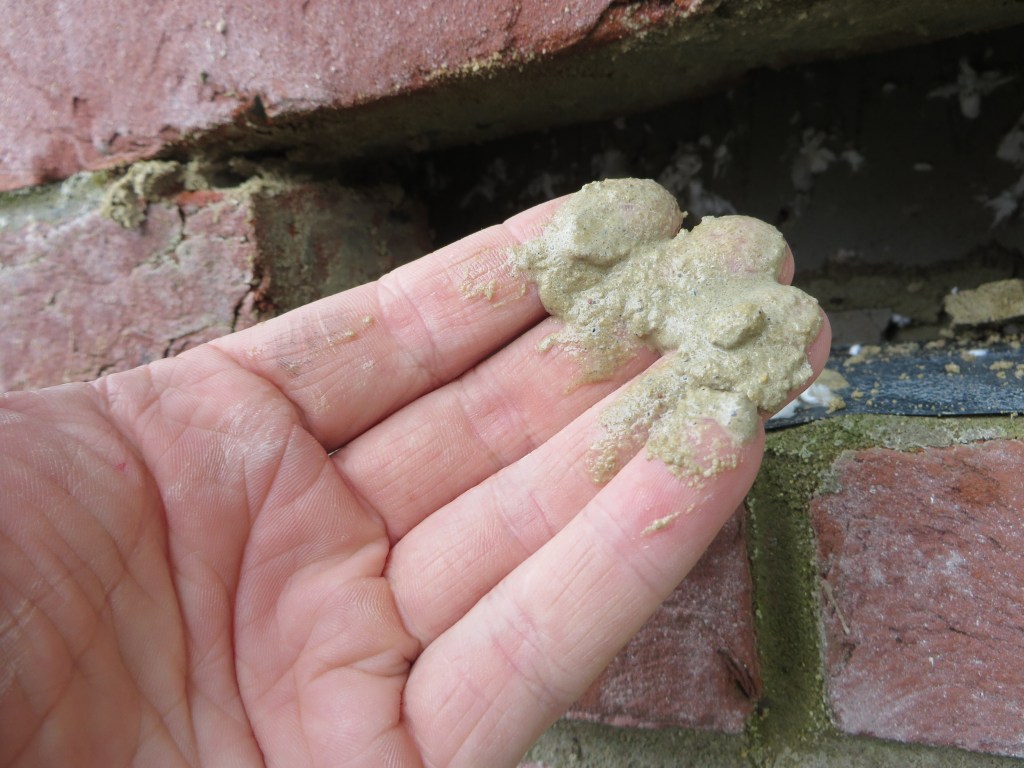

Blown fibre insulation could be scrunched up it was so wet.

DSCN0169

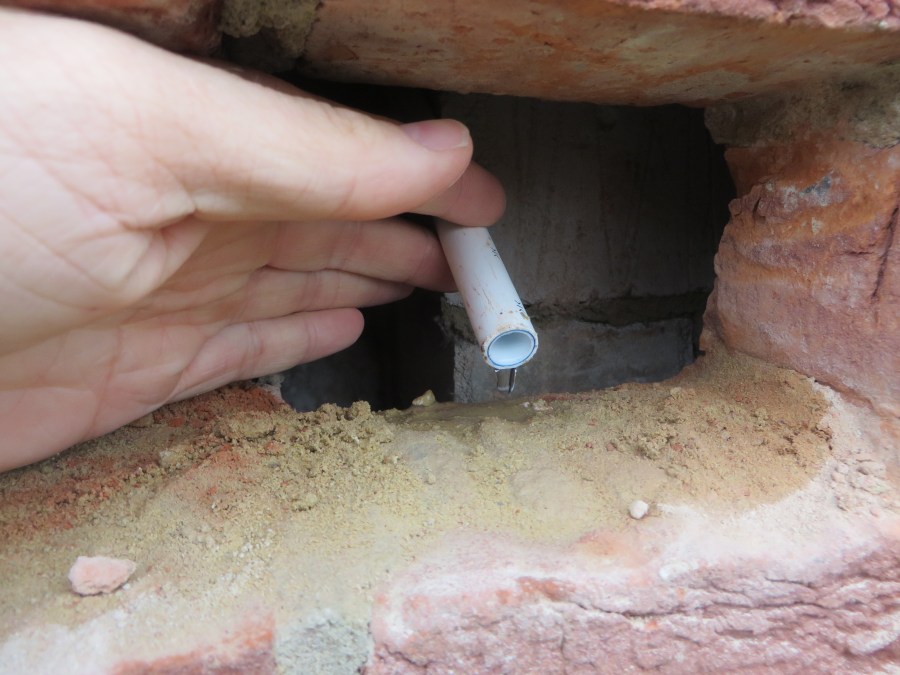

On removing the insulation we find a 15mm pipe dripping in the cavity.

IMG_1184

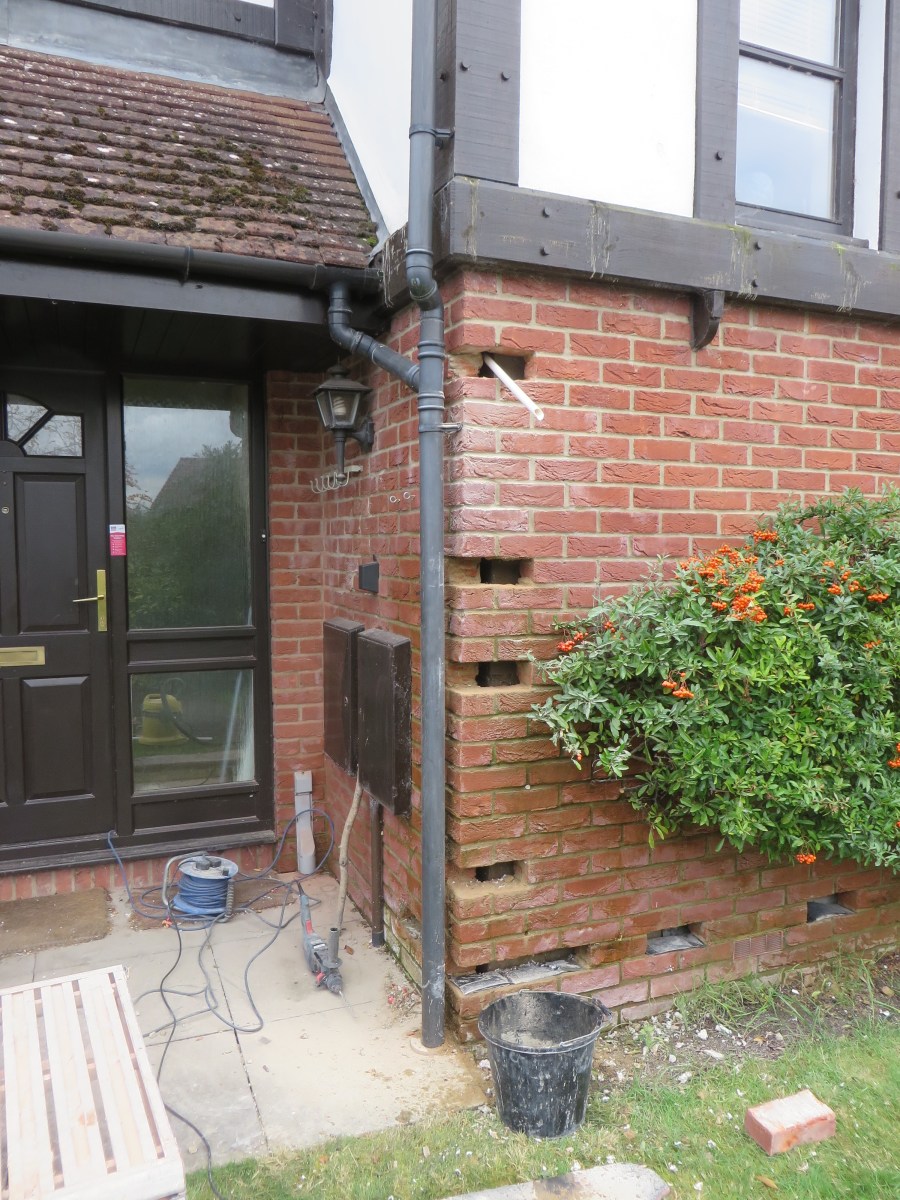

We take a brick out further up the wall cut the pipe of with a pipe slice and stick a tube on so we can try to get the water to run away from the building. The pipe is traced back to the airing cupboard on the first floor, this is something to do with the pressure release valve, and also should have been in copper.

IMG_1181

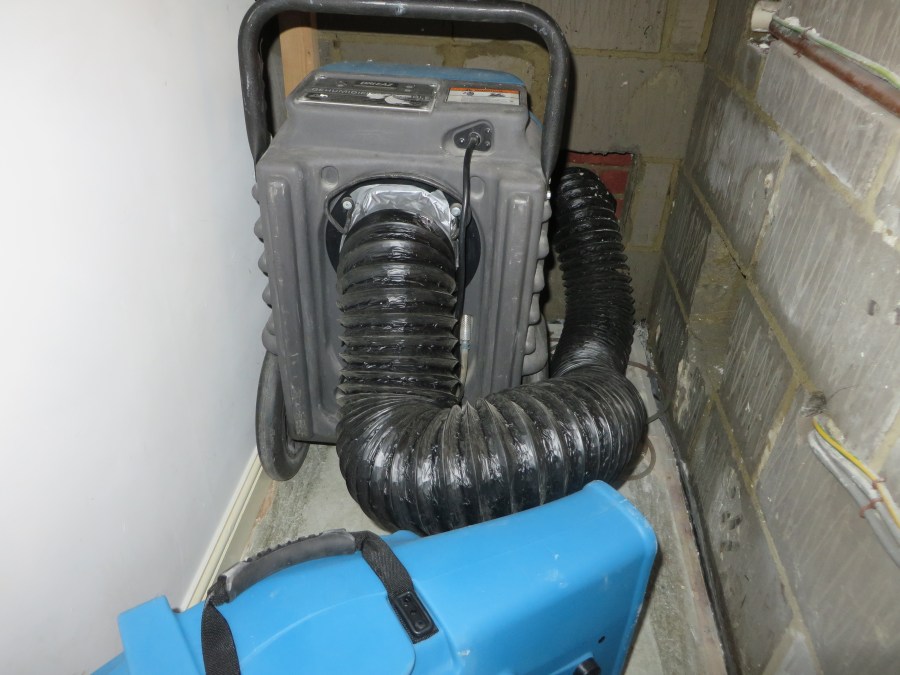

We decided to remove the plasterboard internally, to include the ceiling under the stairs to investigate for timber decay, fortunately this was ok. Removal of the cavity wall insulation and drying of the structure before re-instatement works.

IMG_6865

We carried out the whole job from survey, report, drying, all repairs, and dealt with the insurance company.

This was an interesting survey, which I thought would make a nice case study as everybody was blaming the insulation. Damp surveying is an art, and the surveyor has to be prepared to spend time on a survey, and normally open up areas to find the actual cause. If I hadn’t opened up we would have blamed the small gutter leak and the cavity wall insulation.

I will post some more case studies of recent jobs actually because of wet cavity wall insulation from penetrating damp.
