CIPP drain lining, also known as cured-in-place pipe lining, is a trenchless method used to rehabilitate and repair damaged or deteriorating sewer or drainage pipes without the need for extensive excavation works. This innovative technique is becoming increasingly popular due to its cost-effectiveness and minimal disruption to the surrounding environment.
Here’s how CIPP drain lining works:
1. Inspection: Before the lining process begins, the sewer or drainage pipe is thoroughly inspected using drain cameras to identify the extent of the damage and assess whether CIPP lining is a suitable solution.
2. Cleaning: The pipe is cleaned and cleared of any debris or obstructions to ensure a smooth surface for the lining to adhere to.
3. Lining Insertion: A flexible and resin-saturated liner is inserted into the damaged pipe. The liner is typically made of materials like polyester or fiberglass.
4. Inversion or Pull-in Method: The liner is installed either through inversion (inflating the liner inside the pipe) or pull-in (using a winch or cable to drag the liner through the pipe).
5. Curing Process: Once the liner is in position, it is cured in place using heat, steam, or ultraviolet light. This process hardens the resin, forming a tight-fitting, continuous, and seamless new pipe within the existing damaged pipe.

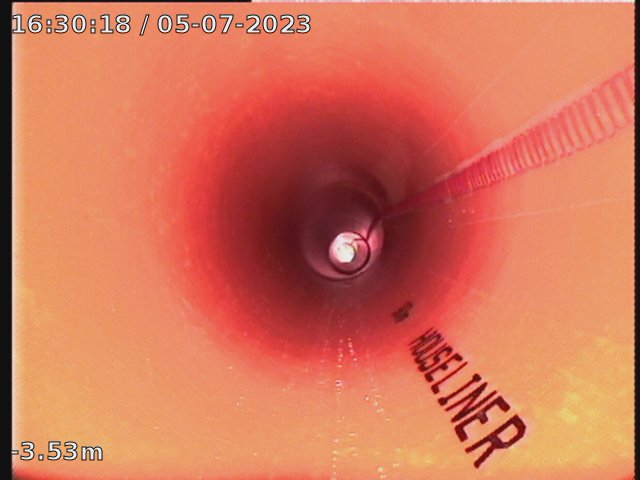

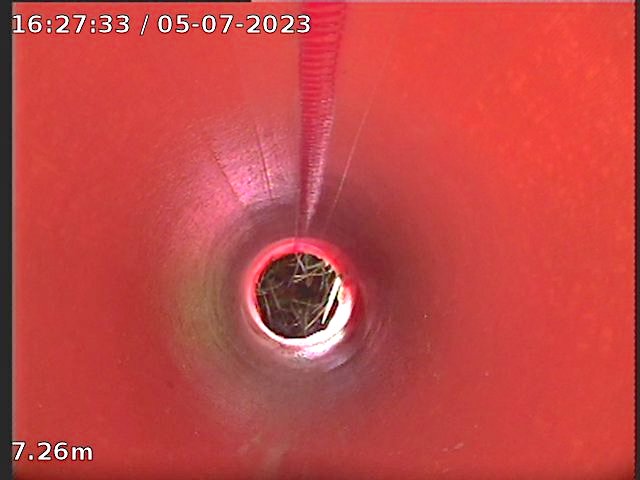

6. Quality Check: After the curing process is complete, the newly lined pipe is inspected again to ensure the integrity of the lining and its compatibility with the original pipe.
Benefits of CIPP drain lining:
– Minimal Disruption: CIPP lining eliminates the need for extensive excavation, reducing disruption to the surrounding area.
– Cost-Effective: CIPP drain lining can be more cost-effective than traditional repair methods, especially when considering the costs associated with excavation.
– Seamless and Durable: The resulting cured-in-place pipe is seamless, reducing the risk of future leaks.
– Extended Lifespan: CIPP lining can significantly extend the lifespan of the rehabilitated pipe, providing a long-term solution to pipe deterioration.
– Environmentally Friendly: This trenchless method reduces the amount of waste generated compared to traditional pipe repair, making it an eco-friendly option.
CIPP drain lining is a versatile and efficient solution for rehabilitating damaged drainage and sewer pipes, making it an attractive choice for addressing various pipe issues.
Whilst drain lining is an option perhaps if you’ve got a few issues within one drain pipe, but if you just have one issue within the drain, sometimes a patch repair would certainly be a cheaper and more suitable option.
How much does CIPP drain lining cost
Unfortunately it’s not cheap, but it is nearly always cheaper than digging up floors within a house, drives, and patios etc. Prices will vary depending on contractor overheads, and also access, and perhaps even the level of difficulty and most importantly risk.
If you need a CCTV drain survey because of a potential damp issue, or a price for CIPP drain lining drop send me an email enquiries@completepreservation.co.uk
